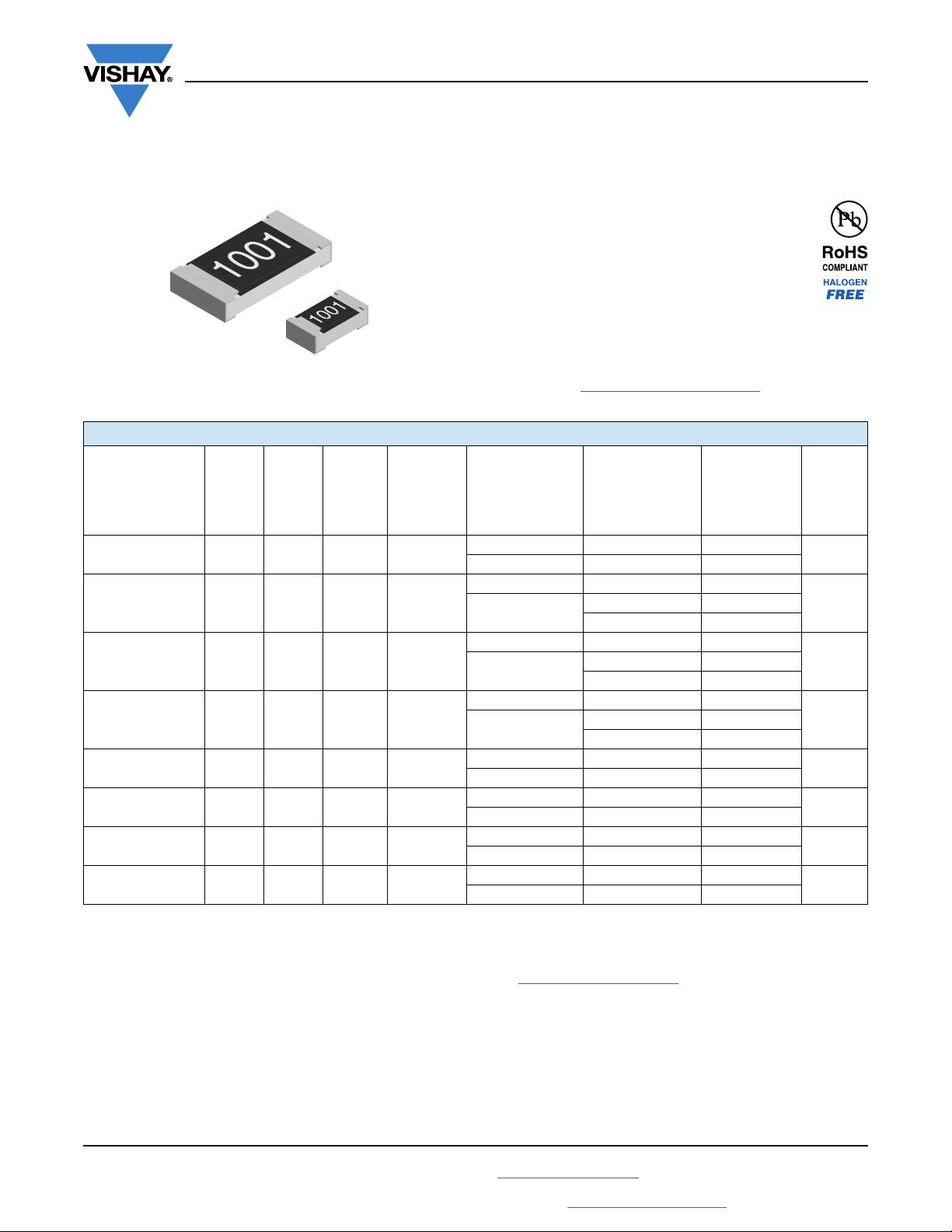

D/CRCW-P e3
www.vishay.com
Vishay
Revision: 07-Apr-14
1
Document Number: 20036
For technical questions, contact: thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Lead (Pb)-Free Thick Film, Rectangular,
Semi-Precision Chip Resistors
FEATURES
• Low temperature coefficient (50 ppm/K) and
tight tolerances (± 0.25 %)
• Pure tin plating provides compatibility with
lead (Pb)-free and lead containing soldering
processing
• Metal glaze on high quality ceramic
• AEC-Q200 qualified
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
Notes
• These resistors do not feature a limited lifetime when operated within the limits of rated dissipation, permissible operating voltage and
permissible film temperature. However, the resistance typically increase due to the resistor’s film temperature over operating time generally
known as drift. The drift may exceed the stability requirements of an individual application circuit and thereby limits the functional time.
• Marking and packaging: See datasheet “Surface Mount Resistor Marking” (www.vishay.com/doc?20020
).
• Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material.
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
CASE
SIZE
INCH
CASE
SIZE
METRIC
POWER
RATING
P
70
W
LIMITING
ELEMENT
VOLTAGE
U
max.
AC
RMS
/DC
V
TEMPERATURE
COEFFICIENT
ppm/K
TOLERANCE
%
RESISTANCE
RANGE
SERIES
D10/CRCW0402-P 0402 1005 0.063 50
± 100 ± 0.5 1R to 1M1
E24; E96
± 50 ± 0.25, ± 0.5, ± 1 100R to 1M
D11/CRCW0603-P 0603 1608 0.1 75
± 100 ± 0.5, ± 0.25 1R to 10M
E24; E96
± 50
± 0.25 100R to 1M
± 0.5, ± 1 100R to 10M
D12/CRCW0805-P 0805 2012 0.125 150
± 100 ± 0.5 10R to 10M
E24; E96
± 50
± 0.25 100R to 1M
± 0.5, ± 1 100R to 10M
D25/CRCW1206-P 1206 3216 0.25 200
± 100 ± 0.5 10R to 10M
E24; E96
± 50
± 0.25
100R to 1M
± 0.5, ± 1 100R to 10M
CRCW1210-P 1210 3225 0.5 200
± 100 ± 0.5
100R to 1M
E24; E96
± 50 ± 0.5, ± 1 100R to 1M
CRCW1218-P 1218 3246 1.0 200
± 100 ± 0.5
100R to 2M2
E24; E96
± 50 ± 0.5, ± 1
100R to 2M2
CRCW2010-P 2010 5025 0.75 400
± 100 ± 0.5 10R to 10M
E24; E96
± 50 ± 0.5, ± 1 100R to 10M
CRCW2512-P 2512 6332 1.0 500
± 100 ± 0.5 10R to 10M
E24; E96
± 50 ± 0.5, ± 1 100R to 10M
